Copper Earthing Strip

700 INR/Piece

Get a Price/Quote

Product Details:

Features High conductivity, Corrosion resistant, Durable, Long service life
Impedance Low, typically < 0.01 ohm/m
Cable Type Earthing strip
Dielectiric Strength Not applicable (bare strip)
Conductor Shape Flat/Strip
Install Type Direct burial, bolted or clamped installation
Number of Conductor Single strip
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Copper Earthing Strip Price And Quantity

Price 700 INR/Piece
Minimum Order Quantity 1 Piece

Copper Earthing Strip Product Specifications

Rated Temperature Up to 150C
Material Copper
Storage Temperature -10C to 50C
Jacket Material Not applicable (bare copper strip)
Length Customizable as per requirement (typically 5 to 50 meters)
Color Natural copper (reddish-brown)
Diameter Not applicable for strip type
Core Number Single
Weight Varies with size and length
Usage & Applications Electrical earthing, lightning protection, bonding systems
Conductor Type Solid
Core Material Copper
Tensile Strength 200 to 250 MPa
Application Earthing/Grounding in electrical installations, substations, transformers
Conductor Material Electrolytic grade copper (EC Grade)
Operating Temperature -40C to 150C
Size 12mm, 20mm, 25mm, 32mm, 40mm, 50mm width, thickness 3mm, 6mm & others
Cable Type Earthing strip
Dielectiric Strength Not applicable (bare strip)
Conductor Shape Flat/Strip
Number of Conductor Single strip
Insulation Material Not insulated (bare copper)
Install Type Direct burial, bolted or clamped installation
Dimension (L*W*H) Various sizes available, e.g., 25mm x 3mm, 50mm x 6mm, customizable
Product Type Copper Earthing Strip
Voltage Suitable for low to medium voltage earthing applications
Impedance Low, typically < 0.01 ohm/m
Features High conductivity, Corrosion resistant, Durable, Long service life

Mounting Type Clamp, bolt or weld
Surface Finish Smooth, plain finish
Conductivity Minimum 97% IACS
RoHS Compliance Yes
Compliance Standard IS 1897, IEC 60439, BS EN 13601
Packaging Type Rolls or customized lengths in bundles
Manufacturing Process Hot rolled, annealed
Corrosion Resistance Excellent, suitable for harsh environments
Purity Minimum 99.9% pure copper

Copper Earthing Strip Trade Information

Payment Terms Cash in Advance (CID)
Supply Ability 1000 Piece Per Month
Delivery Time 5 -15 Days
Main Export Market(s) Eastern Europe, Africa, South America, Asia, North America, Australia, Middle East, Western Europe, Central America
Main Domestic Market All India

Product Description

We are providing a Copper Earthing Strip, which is waterproof and has resistance to cold, heat, moisture, chemical and corrosion. It is used in earthing as it is a good conductor of electricity. We provide the Copper Earthing Strip at affordable prices.

Premium Copper Construction for Unmatched Performance

Manufactured from high-purity electrolytic grade copper, this earthing strip achieves minimum 99.9% purity, ensuring outstanding conductivity (at least 97% IACS) and superior durability. Its inherent corrosion resistance and smooth finish make it a dependable solution for projects exposed to demanding environmental conditions.

Versatile Application and Customizable Options

Engineered for low to medium voltage earthing, this copper strip is available in various standard and custom sizes, ranging from 12mm to 50mm in width and from 3mm upwards in thickness. Whether for direct burial, clamped, bolted, or welded installation, it accommodates specific project needs for substations, transformers, or electrical infrastructure.

Comprehensive Compliance and Reliable Quality

Aligning with major international norms (IS 1897, IEC 60439, BS EN 13601) as well as RoHS regulations, this copper strip ensures a safe and environmentally responsible choice. The hot-rolled and annealed manufacturing process confers both structural integrity and a smooth, professional finish.

FAQ's of Copper Earthing Strip:

Q: How is the Copper Earthing Strip installed in electrical grounding systems?

A: The Copper Earthing Strip can be installed using clamps, bolts, or welds depending on the specific grounding design. It supports direct burial, bolted connections, or clamped installations, ensuring secure and reliable earthing bonds for substations, transformers, and electrical systems.

Q: What are the main benefits of choosing this copper earthing strip over alternatives?

A: This strip offers high electrical conductivity (minimum 97% IACS), excellent corrosion resistance, and long service life due to its 99.9% purity electrolytic copper. It is durable in harsh environments, RoHS compliant, and customizable in dimensions, making it suitable for diverse earthing and lightning protection needs.

Q: When should I consider specifying customized lengths or sizes for my project?

A: You should request custom lengths or sizes when project requirements differ from standard offerings or if minimizing joints and maximizing integrity are critical. The manufacturer can supply rolls or bundle lengths tailored from 5 to 50 meters and customize width or thickness to your specific needs.

Q: Where can this copper earthing strip be used effectively?

A: This strip is ideal for use in electrical installations, substations, transformer earthing, lightning protection systems, and bonding systems-especially where harsh environmental conditions demand superior corrosion resistance and electrical conductivity.

Q: What is the standard compliance of the copper strip and why does it matter?

A: It complies with IS 1897, IEC 60439, and BS EN 13601 standards, ensuring the material meets stringent quality, performance, and safety benchmarks required internationally for copper strips used in electrical applications.

Q: How is the copper strip manufactured to ensure quality and durability?

A: The strip is hot rolled and annealed, which enhances the material's mechanical strength and electrical properties. This process, combined with strict adherence to purity and compliance standards, yields a smooth, defect-free, and long-lasting product.

Other Products in 'old Images' category

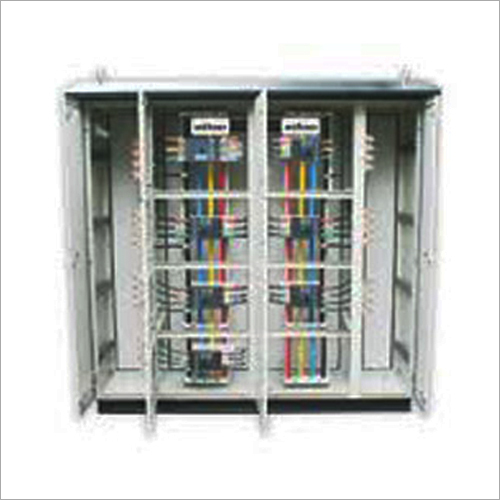

PCC Control Panel Price : 70000 INR/Piece Minimum Order Quantity : 1 Rated Temperature : Up to 50C ambient Material : CRCA Steel, powdercoated Storage Temperature : 10C to 55C Color : Standard Light Grey / customizable Usage & Applications : Main incomer and outgoing feeders management, motor control, power distribution Weight : Varies per size and modules Application : Other, Industrial and commercial electrical power distribution Conductor Material : Other, Copper (bus bars and wires) Operating Temperature : 0C to 50C Size : As per site and project specifications Insulation Material : Other, Highgrade PVC and heatresistant insulation Install Type : Floor mounted / Wall mounted customizable Dimension (L*W*H) : Customized as per client needs Product Type : PCC (Power Control Center) Panel Insulation : Highquality electrical insulation provided Voltage : Other, 415V AC (Typical); Can be customized Features : Robust construction, reliable operation, efficient distribution and control of electrical power, integrated safety features, clear wiring layout Locking Type : Key lockable doors for safety Conductor Type : Other, Single core and multicore utilized Conductor Shape : Other, Flat (bus bars), round (wires) Dielectiric Strength : High; as per IS/IEC standards Length : Customizable as per installation requirements Connector Color : Standard color coding for phase identification Tensile Strength : High durability, suitable for industrial environments Jacket Color : Other, Grey (standard), others available on request Number of Conductor : Depends on design configuration Jacket Material : Other, Powdercoated mild steel Core Number : Custom, as per panel design Core Material : Copper Cable Type : Single core, multicore copper cables Surface Color : White Diameter : Not applicable; panel width as per design

Send Inquiry

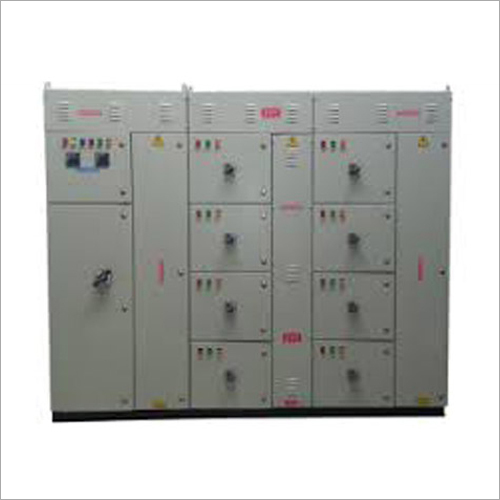

Distribution Control Panel Price : 120000 INR/Piece Minimum Order Quantity : 1 Rated Temperature : 10C to +55C Material : Mild Steel (CRCA) Storage Temperature : 10C to +60C Color : Gray/Offwhite Usage & Applications : Electrical load management, Commercial/Industrial installations Weight : Depends on size & components (approx. 150400 kg) Application : Other, Power distribution, Commercial buildings, Industrial plants, Control of electrical supply Conductor Material : Other, Copper/Aluminium (internal wiring) Operating Temperature : 10C to +55C Size : Customized Insulation Material : Other, High grade PVC/epoxy powder coated Install Type : Floor mounted (free standing or wall mounted) Dimension (L*W*H) : Customizable (e.g. 1800mm x 1200mm x 400mm) Product Type : Distribution Control Panel Insulation : Good (meets IEC/IS standards) Voltage : Other, 415 V AC Features : High strength, Durable, Corrosion resistant, Customizable design, Easy installation, Shock proof enclosure Locking Type : Key lockable enclosures Conductor Type : Other, Single/Multiple (internal) Conductor Shape : Other, Round/Stranded (internal) Dielectiric Strength : 2.5kV for 1 minute Length : Standard or as per requirement Connector Color : Silver/Metallic Tensile Strength : High tensile strength (panel enclosure) Jacket Color : Other, Gray/Offwhite Number of Conductor : Dependent on panel design Jacket Material : Other, Metal sheet (CRCA steel) Core Number : Varies as per design Core Material : Copper/Aluminium Cable Type : Power/Control cables supported Surface Color : White Diameter : Panel thickness 1.6mm to 2.5mm
