Distribution Control Panel

120000 INR/Piece

Get a Price/Quote

Product Details:

Core Material Copper/Aluminium
Number of Conductor Dependent on panel design
Tensile Strength High tensile strength (panel enclosure)
Install Type Floor mounted (free standing or wall mounted)
Insulation Good (meets IEC/IS standards)
Diameter Panel thickness 1.6mm to 2.5mm
Operating Temperature -10C to +55C
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Distribution Control Panel Price And Quantity

Minimum Order Quantity 1 Piece
Price 120000 INR/Piece

Distribution Control Panel Product Specifications

Material Mild Steel (CRCA)
Application Power distribution, Commercial buildings, Industrial plants, Control of electrical supply
Size Customized
Connector Color Silver/Metallic
Install Type Floor mounted (free standing or wall mounted)
Conductor Material Copper/Aluminium (internal wiring)
Insulation Good (meets IEC/IS standards)
Tensile Strength High tensile strength (panel enclosure)
Number of Conductor Dependent on panel design
Core Material Copper/Aluminium
Locking Type Key lockable enclosures
Operating Temperature -10C to +55C
Voltage 415 V AC
Diameter Panel thickness 1.6mm to 2.5mm
Insulation Material High grade PVC/epoxy powder coated
Usage & Applications Electrical load management, Commercial/Industrial installations
Color Gray/Off-white
Rated Temperature -10C to +55C
Length Standard or as per requirement
Dielectiric Strength 2.5kV for 1 minute
Weight Depends on size & components (approx. 150-400 kg)
Core Number Varies as per design
Jacket Color Gray/Off-white
Dimension (L*W*H) Customizable (e.g. 1800mm x 1200mm x 400mm)
Jacket Material Metal sheet (CRCA steel)
Product Type Distribution Control Panel
Conductor Type Single/Multiple (internal)
Cable Type Power/Control cables supported
Storage Temperature -10C to +60C
Features High strength, Durable, Corrosion resistant, Customizable design, Easy installation, Shock proof enclosure
Conductor Shape Round/Stranded (internal)

Surface Treatment 7 tank phosphating process & powder coating
Standards Complied IEC 61439, IS 8623
Rated Current up to 6300A
Cooling Natural or Forced air cooling
Finish Matte/Glossy powder coated
Ingress Protection IP42/IP54 (customizable)
Panel Type Compartments, Draw-out/Non draw-out type
Bus Bar Material Electrolytic copper or aluminium, tinned/untinned
Door Type Hinged/Removable doors
Mounting Type Base Channel / Floor Mount
Short Circuit Withstand Capacity up to 50 kA for 1 sec
Earth Bus Bar Provided throughout the panel
Panel Accessories Ammeter, Voltmeter, Indicator lamps, MCBs, MCCBs, Relays
Frequency 50 Hz

Distribution Control Panel Trade Information

Payment Terms Cash in Advance (CID)
Supply Ability 1000 Piece Per Month
Delivery Time 5 -15 Days
Main Export Market(s) Eastern Europe, Africa, South America, North America, Asia, Australia, Middle East, Western Europe, Central America
Main Domestic Market All India

Product Description

Buy Online the Exclusive Distribution Control Panel from a renowned Indian manufacturer, service provider, and supplier. Designed for top-notch performance, this grand panel supports IP42/IP54 ingress protection, customizable dimensions, and both draw-out/non draw-out types. Featuring surface-treated CRCA steel, high-strength, shock-proof enclosure, and a premium corrosion-resistant matte/glossy finish. Compatible with electrolytic copper or aluminium bus bars, with a short circuit withstand of up to 50kA, it's ideal for commercial buildings and industrial plants. Enjoy discounts and easy installation on a highly durable, customizable solution adhering to IEC and IS standards.

Extra Features and Versatile Use for Commercial and Industrial Applications

The Distribution Control Panel boasts advanced features including natural or forced air cooling, key lockable enclosures, modular compartments, and ammeter/voltmeter accessories. Designed for easy installation with customizable sizing, it excels in both power distribution and electrical load management. Its versatility makes it perfect for industrial plants, commercial buildings, and control of electrical supply, providing reliable operation even under high loads with a short circuit withstand of up to 50kA.

Certifications, Sample Policy, and Export Market Details with Premium Service

Manufactured in line with IEC 61439 and IS 8623 standards, this panel guarantees quality and safety. Upon inquiry, premium sample panels can be arranged with transparent list prices and secure freight handling. Primarily exported to Asian and Middle Eastern markets, each shipment is carefully packed to minimize damage. Fast delivery and responsive after-sales support make it a preferred choice for discerning customers worldwide.

FAQ's of Distribution Control Panel:

Q: How is the Distribution Control Panel customized for specific project requirements?

A: Customization is offered in dimensions, panel finish, internal wiring conductor type, and accessories to match your precise installation needs. Both draw-out and fixed types are available, and mounting styles include base channel or floor mount.

Q: What standards does the Distribution Control Panel comply with?

A: The panel is tested and certified according to globally recognized IEC 61439 and IS 8623 standards, ensuring high quality, electrical safety, and dependable performance in all supported applications.

Q: Where can the Distribution Control Panel be installed for optimal use?

A: It is ideal for commercial buildings, industrial facilities, and any application requiring reliable control of electrical supply or load management. It supports free standing or floor mounted installation configurations.

Q: What is the process for obtaining a sample Distribution Control Panel?

A: Upon request, you can receive a sample panel at a premium list price. Shipping and freight arrangements are handled securely to ensure the panel arrives safely and promptly for evaluation.

Q: What are the main benefits of choosing this panel over conventional options?

A: This panel delivers higher durability, customizable designs, superior ingress protection (IP42/IP54), shock proof enclosures, and a top-notch finish. Its modularity allows easy upgrades and integration, ensuring long-term reliability and minimal maintenance.

Other Products in 'old Images' category

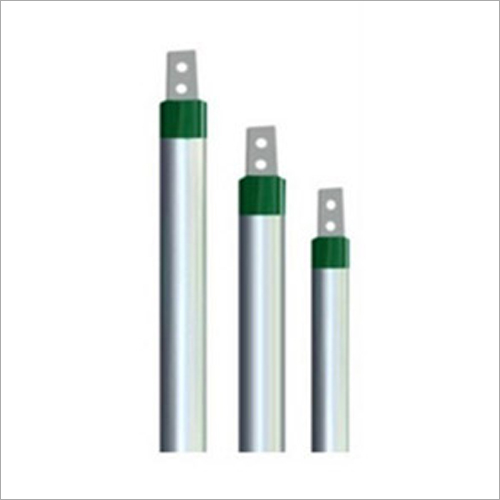

Galvanized Earthing Rod Price : 2000 INR/Piece Minimum Order Quantity : 1 Features : Corrosion resistant, High conductivity, Robust construction, Long service life Storage Temperature : Store in dry, noncorrosive environments Product Type : Earthing Rods Dimension (L*W*H) : Varies according to rod size (approx. diameter: 16mm, 25mm, 32mm, etc.) Weight : Varies with size, approx. 26 kg per rod Rated Temperature : 10C to +60C Usage & Applications : Electrical earthing in residential, commercial and industrial installations Color : Metallic silver with green cap Voltage : Other, Suitable for standard grounding applications Operating Temperature : 10C to +60C Install Type : Direct drive/hammerin Size : Diameter options: 16mm, 25mm, 32mm; Length options: 1m, 2m, 3m Application : Other, Earthing/grounding systems for electrical installations Material : Galvanized iron/steel Insulation Material : Other, Not insulated (bare rod) Conductor Shape : Other, Cylindrical rod Conductor Type : Solid Length : 1m, 2m, 3m (customizable) Locking Type : Bolt/plate connection hole Tensile Strength : High tensile strength, typically > 400 MPa Conductor Material : Other, Galvanized steel Diameter : 16mm, 25mm, 32mm Number of Conductor : Single solid rod Connector Color : Green Impedance : Low impedance for effective earthing Jacket Material : Other, No jacket Jacket Color : Other, No jacket; metallic silver with green connector cap Core Number : Single core (rod) Core Material : Galvanized steel

Send Inquiry

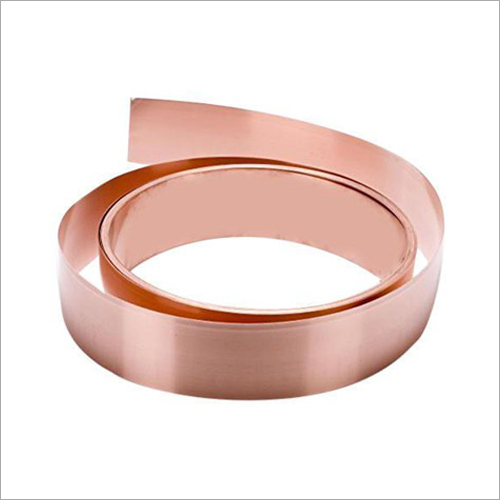

Copper Earthing Strip Price : 700 INR/Piece Minimum Order Quantity : 1 Features : High conductivity, Corrosion resistant, Durable, Long service life Storage Temperature : 10C to 50C Product Type : Earthing Strip Dimension (L*W*H) : Various sizes available, e.g., 25mm x 3mm, 50mm x 6mm, customizable Weight : Varies with size and length Rated Temperature : Up to 150C Usage & Applications : Electrical earthing, lightning protection, bonding systems Color : Natural copper (reddishbrown) Voltage : Other, Suitable for low to medium voltage earthing applications Operating Temperature : 40C to 150C Install Type : Direct burial, bolted or clamped installation Size : 12mm, 20mm, 25mm, 32mm, 40mm, 50mm width, thickness 3mm, 6mm & others Application : Other, Earthing/Grounding in electrical installations, substations, transformers Material : Copper Insulation Material : Other, Not insulated (bare copper) Conductor Shape : Other, Flat/Strip Conductor Type : Solid Length : Customizable as per requirement (typically 5 to 50 meters) Tensile Strength : 200 to 250 MPa Conductor Material : Other, Electrolytic grade copper (EC Grade) Diameter : Not applicable for strip type Number of Conductor : Single strip Impedance : Low, typically < 0.01 ohm/m Jacket Material : Other, Not applicable (bare copper strip) Dielectiric Strength : Not applicable (bare strip) Core Number : Single Core Material : Copper

Send Inquiry

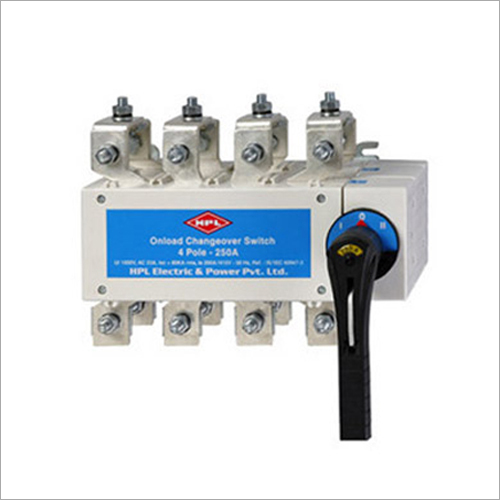

HPL Switchgear Price : 4000 INR/Piece Minimum Order Quantity : 1 Features : Robust construction, Easy operation, High durability, Safe and reliable performance Storage Temperature : 20C to +70C Product Type : Changeover Switch (Isolator Type) Dimension (L*W*H) : Approx. 200mm x 160mm x 100mm Weight : Approx. 1.5 kg (varies with rating) Rated Temperature : Up to 55C Usage & Applications : Suitable for use in LT Panel, Distribution boards, Generator panels, etc. Color : Grey/Black/Blue Voltage : Other, 415V AC Operating Temperature : 10C to +55C Install Type : Panel Mounting Size : Standard sizes as per rating (ex: 63A, 100A, etc.) Application : Other, Industrial and commercial electrical switchgear panels Material : Engineering Thermoplastic & Metal Insulation Material : Other, Highquality engineering plastic Conductor Shape : Other, Flat/Busbar Compatible Conductor Type : Solid Locking Type : Padlockable handle (optional) Tensile Strength : High mechanical strength Conductor Material : Other, Copper/Brass Terminals Number of Conductor : 4 Pole (Three Phase + Neutral) Connector Color : Metallic/Grey Insulation : Double insulation for enhanced safety Jacket Color : Other, White/Grey Dielectiric Strength : 2.5kV for 1 minute

Send Inquiry

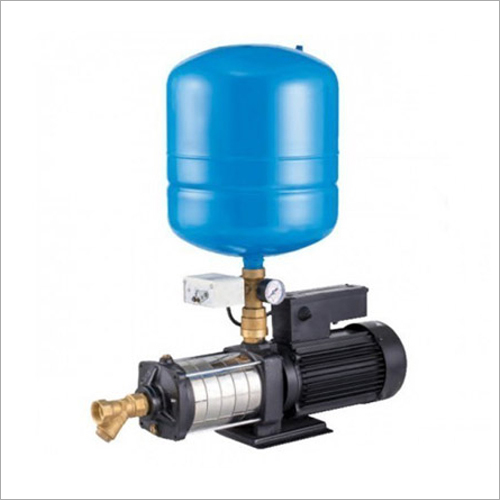

Pressure Booster Pump Price : 8000 INR/Piece Minimum Order Quantity : 1 Features : Automatic pressure boosting, noiseless operation, compact design, corrosion resistant parts Storage Temperature : 10C to 50C Product Type : Pressure Booster Pump Dimension (L*W*H) : Approx. 450 x 230 x 350 mm Weight : Approximately 1215 kg Rated Temperature : Max. 40C ambient Usage & Applications : Domestic, residential buildings, small commercial applications Color : Blue & Black Voltage : Other, 220240V AC Operating Temperature : Upto 40C Install Type : Horizontal mounting Size : Standard Application : Other, Domestic water supply, pressure boosting for showers, gardens, and household usage Material : Stainless Steel & Brass (Wetted Parts), Cast Iron (Pump Body) Insulation Material : Other, FClass Insulation Conductor Shape : Round Conductor Type : Other, Single Phase Conductor Material : Other, Copper (for motor winding) Insulation : FClass
